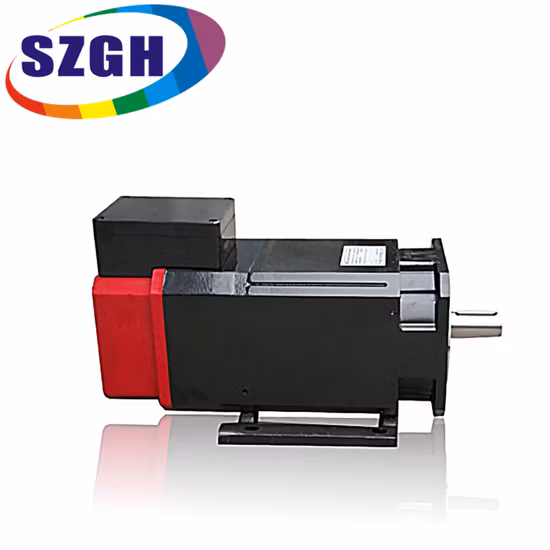

11kw 71n. M AC Spindle Servo Motor for CNC Lathe /Milling Machine Induction Motor
Description
Basic Info
| Model NO. | SZGH10-4-71-11/15-4-1500 |
| Starting Mode | Auto-induction Voltage-reduced Starting |
| Certification | ISO9001 |
| Model | Szgh10-4-71-11/15-4-1500 |
| Rated Power(Kw) | 11 |
| Rated Torque(N.M) | 71 |
| Rated Current(a) | 23.5 |
| Rated Frequency(Hz) | 50-60Hz |
| Rated Speed(Rpm) | 1500 |
| Max Speed with Rated Torque | 6000 |
| Max Speed(Rpm) | 8000 |
| Encoder(PPR) | 1024 |
| Mounting | B3 B5 B35 |
| Weight | 88kg |
| Quality Warranty | 1 Years |
| Transport Package | Wooden Packing |
| Specification | 0.70*0.34*0.45 (M) |
| Trademark | SZGH |
| Origin | Shenzhen |
| HS Code | 9032899050 |
| Production Capacity | 1000 Sets /Month |
Product Description
11kw 71N.m AC spindle servo motor for CNC lathe /milling machine induction motorSZGH AC spindle motor can be support 0.75kw -220kw , 0 RPM -24000rpm ;
High performance Control function comprehensive: stable speed control, accurate position control,excellent torque control. Safe & Reliable Products comply with international standards, through the CE certification. Set up multiple protection circuit, the comprehensive protection of safety equipment.Widely used in cnc machine,machine tools,robot,petroleum,textile,printing,metallurgy,artillery,radar and other automatic control equipment.
Packing list : 1: SZGH10-4-71-11/15-4-150011kw spindle motor - 1 pcs 2: SZGH-S4T011 11kw spindle driver - 1pcs 3: resistor - 1 pcs 4) SZGH1CX-5M control cables -1 pcs5)SZGH1EX-5M encoder cables - 1pcs 6)SZGH1FX-5M Feedback cable - 1pcs 7) Driver manual -1 PCS Note : pls contact us when you need :1) B3( footing mounting ) 2) long cables 3) 220V
Product Description
| Rated power | 11kw |
| Rated toque | 71NM |
| Rated speed | 1500RPM |
| Max speed | 8000PRM |
| Rated Power | 1024PPR |
| Rated Power | 50HZ-60HZ |
Product ParametersMotor Features CW&CCW: Speed Error +/- 1RPM , Acceleration/Deceleration time of 3000RPM : 1secondIndependent Quasi Stop: Positioning with High Precision(0.03.)Rigid Tapping: Max speed of tapping is 3000RPM ,Min of dental work is M3 ;Function of C-Axis: Indexing Accuracy: +/-1 Pulse ; Turning/Milling: 0.01rpm ;Cutting in Low Speed: Overload(3 times holding torque),ensure stablity of cutting,applied in casting process;High-Speed Precision Machining: Constant power output over 4000RPM,stable ratoting speed,ensure finish;Strong Applicability: Match for CNC System , PLC etc.Powerful Development : Custome Manufacturing .
Driver Features High-PerformanceSafe & ReliableRemote Communication Function(Optional) Powerful Expansion Capability(Optional)SZGH-S4T011, AC Spindle Servo Driver ,Rated Input Voltage:3 Phase 380VAC, Rated Output Current:25A , Rated Output Capacity: 17KVA , match for 11kW ac spindle servo motor(SZGH10-4-71-11/15-4-1500).Certifications
1.How about after-sales service?
We have a professional technology team that support best ,fast and professional technological support for our customer.2.Do you support customized manufacturing?Yes,we can customized manufacturing according to customer's requirement. We support to OEM your own company display interface and logo.3.How long is your delivery time?Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.10-20 days if customized manufacturing.4. Do you provide samples ? is it free or extra ?Yes, we could offer the sample with sample price.5.What is your terms of payment ?Payment<=2000USD, 100% in advance. Payment>2000USD, 70% T/T in advance, balance before shipment.Our Contact
